为了更加方便的实现系统和应用程序日志接入ES，官方推出了Elastic Agent应用，Elastic Agent可以实现通过更少的配置和安装来简化数据采集配置，通过Fleet可以轻松的管理整个Elastic Agent队列。Kibana为我们内置了大多数场景下日志的采集与可视化分析配置，我们仅需要在kibanaUI中点击操作便可完成复杂的日志采集。更多fleet相关内容，可参考文档：https://www.cuiliangblog.cn/detail/section/133432981

安装Fleet Server

Fleet Server可以由多台机器组成Fleet server cluster，用于集中管理 Elastic Agent。它作为 Elastic Agent 的一部分在用作服务器的主机上启动。一个 Fleet Server 进程可以支持多个 Elastic Agent 连接，并作为一个控制面来更新代理策略、收集状态信息和协调 Elastic Agent 的操作。fleet server节点建议部署在es集群之外的机器上，生产环境建议2台及以上组成集群，通过负载均衡方式管理与下发agent策略。

配置Fleet Server

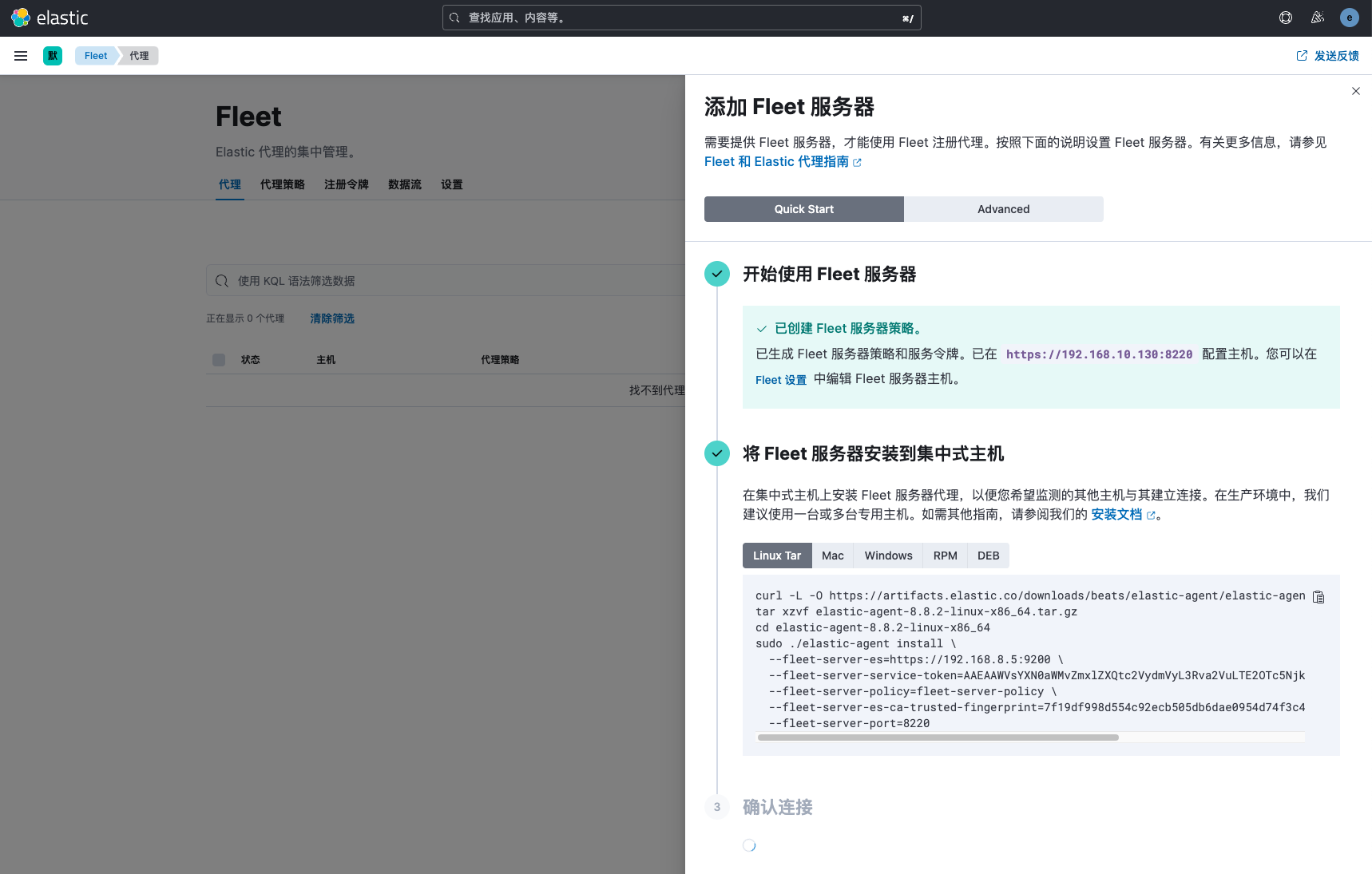

进入fleet菜单，点击添加fleet服务器。填写要部署fleet服务器的地址，格式为https://fleet服务器ip:8220，本实验填写地址分别为https://192.168.10.130:8220、https://192.168.10.131:8220 点击继续按钮，生成Fleet Server部署命令

部署Fleet Server

拷贝es证书至fleet1和fleet2节点

[root@es-fleet1 ~]# mkdir -p /etc/elasticsearch/certs
[root@es-fleet1 ~]# scp es-master:/etc/elasticsearch/certs/http_ca.crt /etc/elasticsearch/certs/

根据kibana提示，依次在es-fleet1节点和es-fleet2节点执行命令

[root@es-fleet1 ~]# curl -L -O https://artifacts.elastic.co/downloads/beats/elastic-agent/elastic-agent-8.8.2-linux-x86_64.tar.gz
[root@es-fleet1 ~]# tar -zxf elastic-agent-8.8.2-linux-x86_64.tar.gz
[root@es-fleet1 ~]# cd elastic-agent-8.8.2-linux-x86_64
[root@es-fleet1 elastic-agent-8.8.2-linux-x86_64]# ./elastic-agent install \
  --fleet-server-es=https://192.168.8.5:9200 \
  --fleet-server-service-token=AAEAAWVsYXN0aWMvZmxlZXQtc2VydmVyL3Rva2VuLTE2ODk1ODQyMDczMjc6Y2F4SXp0djdSdWFob3FiRGFXMngxQQ \
  --fleet-server-policy=fleet-server-policy \
  --fleet-server-es-ca-trusted-fingerprint=7f19df998d554c92ecb505db6dae0954d74f3c47ef56b78b46b65662558b988c \
  --fleet-server-port=8220
Elastic Agent will be installed at /opt/Elastic/Agent and will run as a service. Do you want to continue? [Y/n]:y
{"log.level":"info","@timestamp":"2023-07-17T17:28:06.353+0800","log.origin":{"file.name":"cmd/enroll_cmd.go","file.line":410},"message":"Generating self-signed certificate for Fleet Server","ecs.version":"1.6.0"}
{"log.level":"info","@timestamp":"2023-07-17T17:28:10.468+0800","log.origin":{"file.name":"cmd/enroll_cmd.go","file.line":773},"message":"Waiting for Elastic Agent to start Fleet Server","ecs.version":"1.6.0"}
{"log.level":"info","@timestamp":"2023-07-17T17:28:14.472+0800","log.origin":{"file.name":"cmd/enroll_cmd.go","file.line":787},"message":"Fleet Server - Running on policy with Fleet Server integration: fleet-server-policy; missing config fleet.agent.id (expected during bootstrap process)","ecs.version":"1.6.0"}
{"log.level":"info","@timestamp":"2023-07-17T17:28:14.907+0800","log.origin":{"file.name":"cmd/enroll_cmd.go","file.line":478},"message":"Starting enrollment to URL: https://es-cold:8220/","ecs.version":"1.6.0"}
{"log.level":"info","@timestamp":"2023-07-17T17:28:16.899+0800","log.origin":{"file.name":"cmd/enroll_cmd.go","file.line":276},"message":"Successfully triggered restart on running Elastic Agent.","ecs.version":"1.6.0"}
Successfully enrolled the Elastic Agent.
Elastic Agent has been successfully installed.
# 设置开机自启动
[root@es-fleet1 ~]# systemctl enable elastic-agent
# 安装完成后，Fleet Server服务文件路径在/opt/Elastic/Agent

在es-fleet2节点也部署elastic agent服务。

Fleet Server部署完成

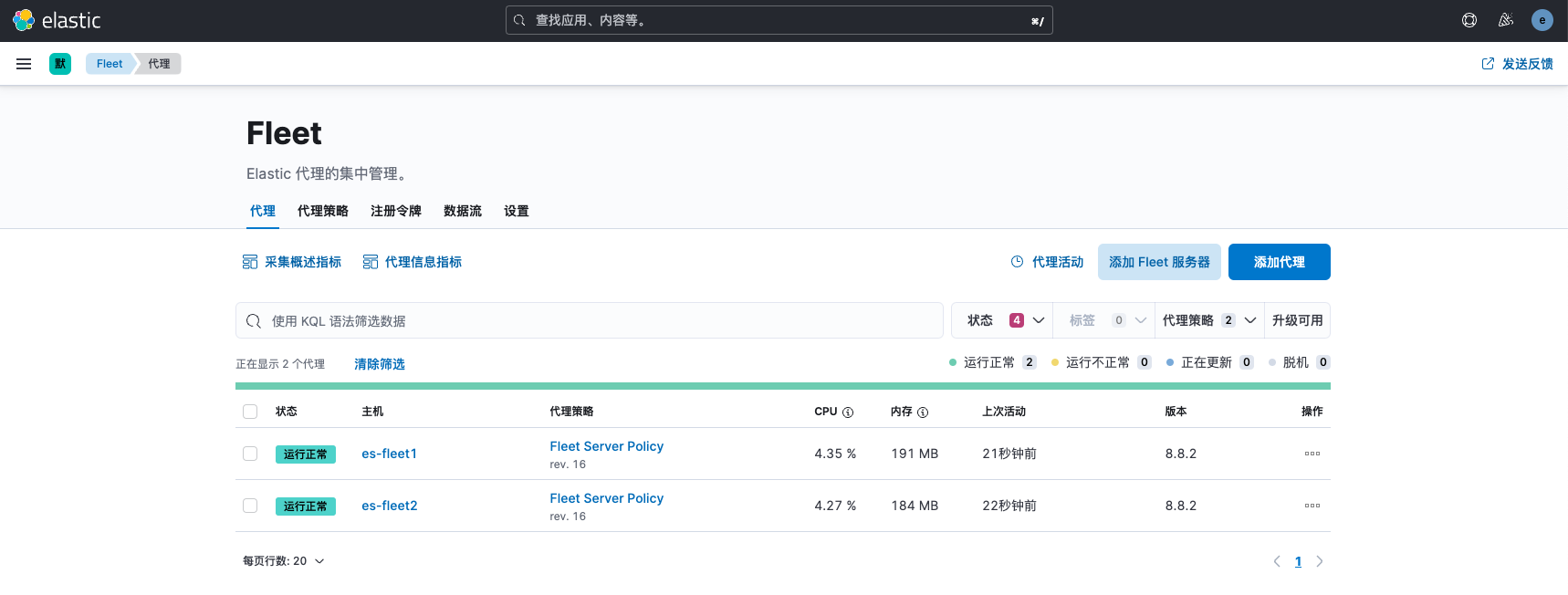

fleet server部署完成后，kibana界面即可显示fleet server相关信息。

安装Elastic Agent

Elastic Agent会根据策略中的配置信息来收集和发送数据到 Elasticsearch，通常情况下同种类型的服务器使用相关的agent策略。

生成Agent安装命令

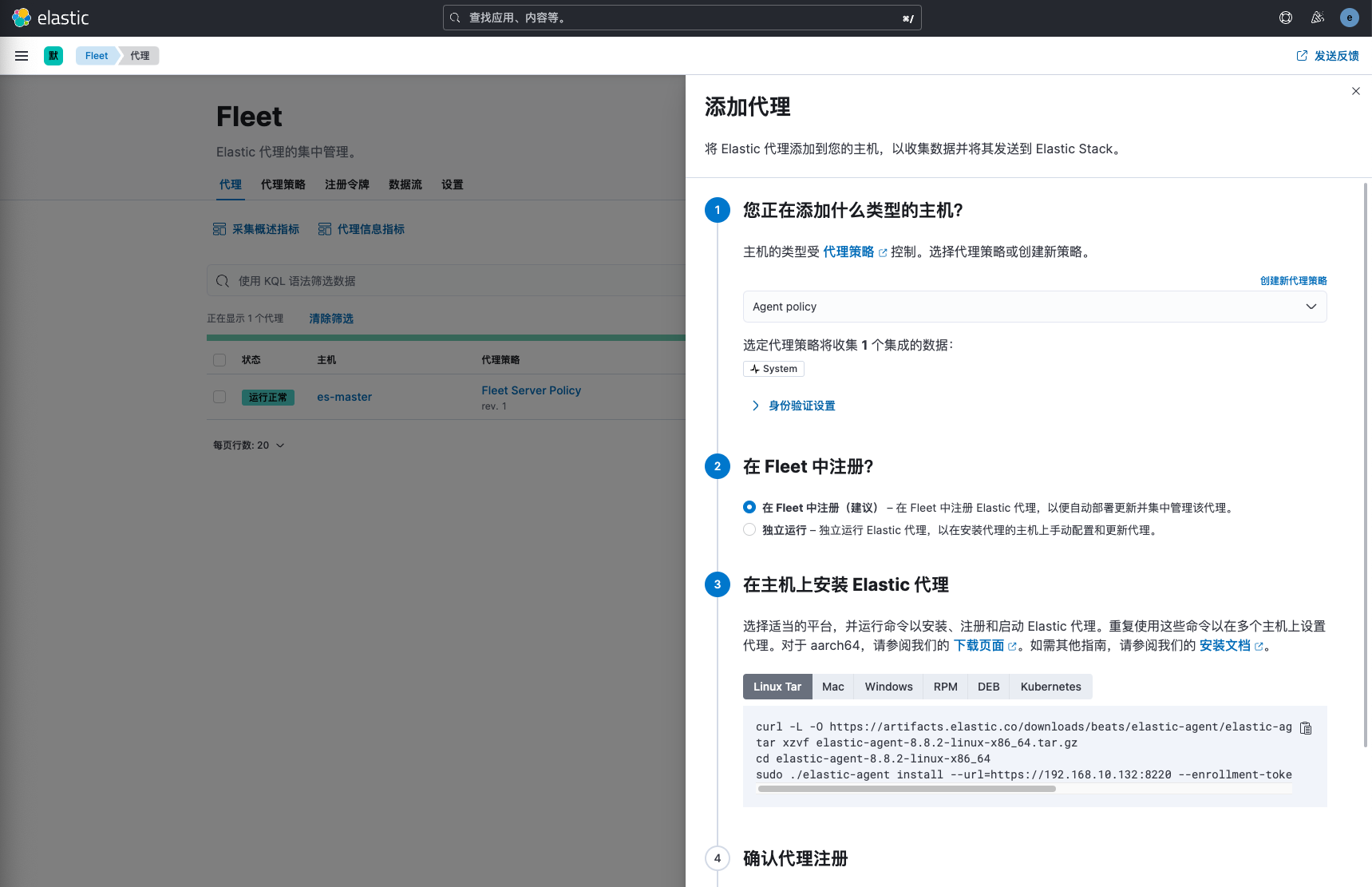

点击右侧添加代理按钮，进入配置页面然后会为我们生成代理安装命令

安装Elastic Agent

依次在剩余的其他节点上执行生成的代理安装命令。以cold节点为例：

[root@es-cold ~]# curl -L -O https://artifacts.elastic.co/downloads/beats/elastic-agent/elastic-agent-8.8.2-linux-x86_64.tar.gz
[root@es-cold ~]# tar -zxf elastic-agent-8.8.2-linux-x86_64.tar.gz
[root@es-cold ~]# cd elastic-agent-8.8.2-linux-x86_64
[root@es-cold elastic-agent-8.8.2-linux-x86_64]# ./elastic-agent install --url=https://192.168.10.130:8220 --url=https://192.168.10.131:8220 --enrollment-token=UGo4MGxZa0JFb2Q4b0ZUOFU4Zzk6cVlvaXc2SlBTb3VpRjhPLWFtMXJ1QQ== --insecure
Elastic Agent will be installed at /opt/Elastic/Agent and will run as a service. Do you want to continue? [Y/n]:y
{"log.level":"warn","@timestamp":"2023-07-21T18:57:06.341+0800","log.logger":"tls","log.origin":{"file.name":"tlscommon/tls_config.go","file.line":104},"message":"SSL/TLS verifications disabled.","ecs.version":"1.6.0"}
{"log.level":"info","@timestamp":"2023-07-21T18:57:06.878+0800","log.origin":{"file.name":"cmd/enroll_cmd.go","file.line":478},"message":"Starting enrollment to URL: https://192.168.10.132:8220/","ecs.version":"1.6.0"}
{"log.level":"warn","@timestamp":"2023-07-21T18:57:07.130+0800","log.logger":"tls","log.origin":{"file.name":"tlscommon/tls_config.go","file.line":104},"message":"SSL/TLS verifications disabled.","ecs.version":"1.6.0"}
{"log.level":"info","@timestamp":"2023-07-21T18:57:08.932+0800","log.origin":{"file.name":"cmd/enroll_cmd.go","file.line":276},"message":"Successfully triggered restart on running Elastic Agent.","ecs.version":"1.6.0"}
Successfully enrolled the Elastic Agent.
Elastic Agent has been successfully installed.
# 设置开机自启动
[root@es-cold ~]# systemctl enable elastic-agent

记得添加--insecure参数，否则自签证书会报x509证书错误。
默认情况下生成的--url只有https://192.168.10.130:8220，改为--url https://192.168.10.130:8220 --url https://192.168.10.131:8220，防止fleet1节点故障时无法更新策略。

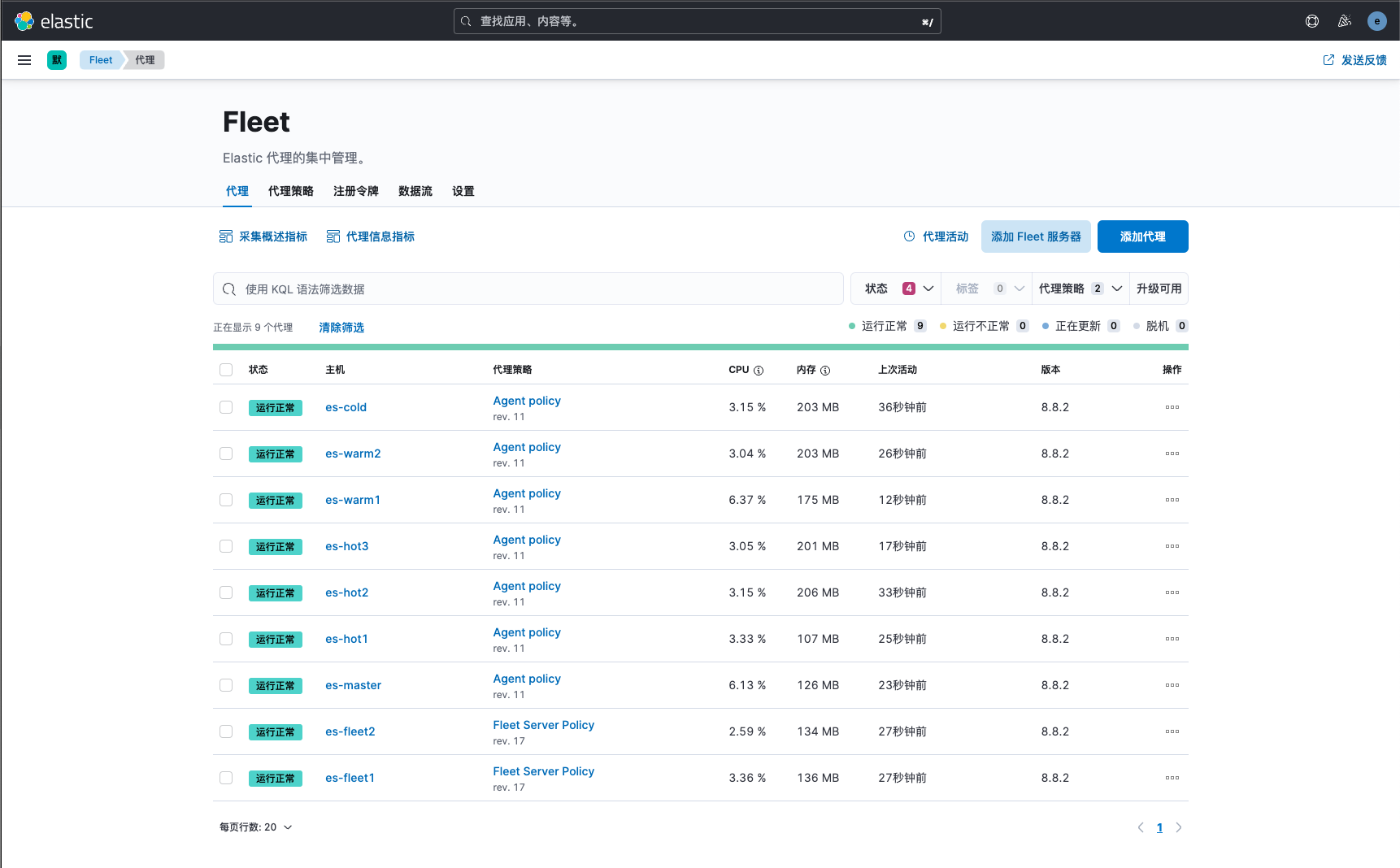

执行完上述命令后，查看Kibana页面，已经成功添加了一个代理其他节点也依次执行上述步骤，执行完成后，fleet页面信息如下所示

配置代理策略

Linux审计日志

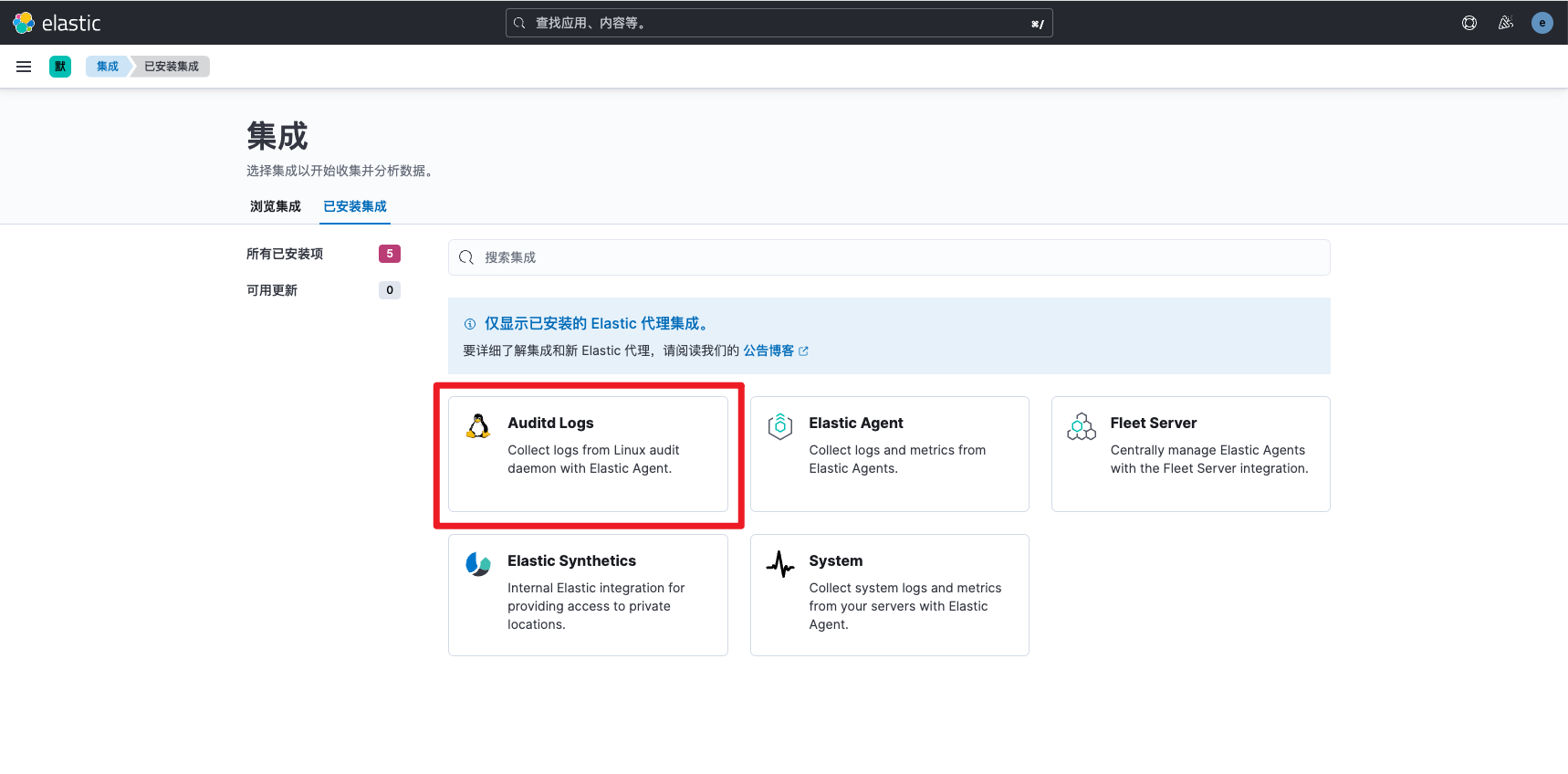

打开kibana集成菜单添加Linux登录审计日志配置代理策略点击保存并继续，提示添加完成后，在已安装集成菜单中可以看到已添加Auditd Logs

Elasticsearch

在集成菜单中找到Elasticsearch并添加与集成Linux审计日志一样，在代理策略中选择已有的Agent Policy 修改logs的默认值，指定日志路径修改metrics的默认值，修改为https，填写账号密码与ca证书路径

certificate_authorities: ["/etc/elasticsearch/certs/http_ca.crt"]

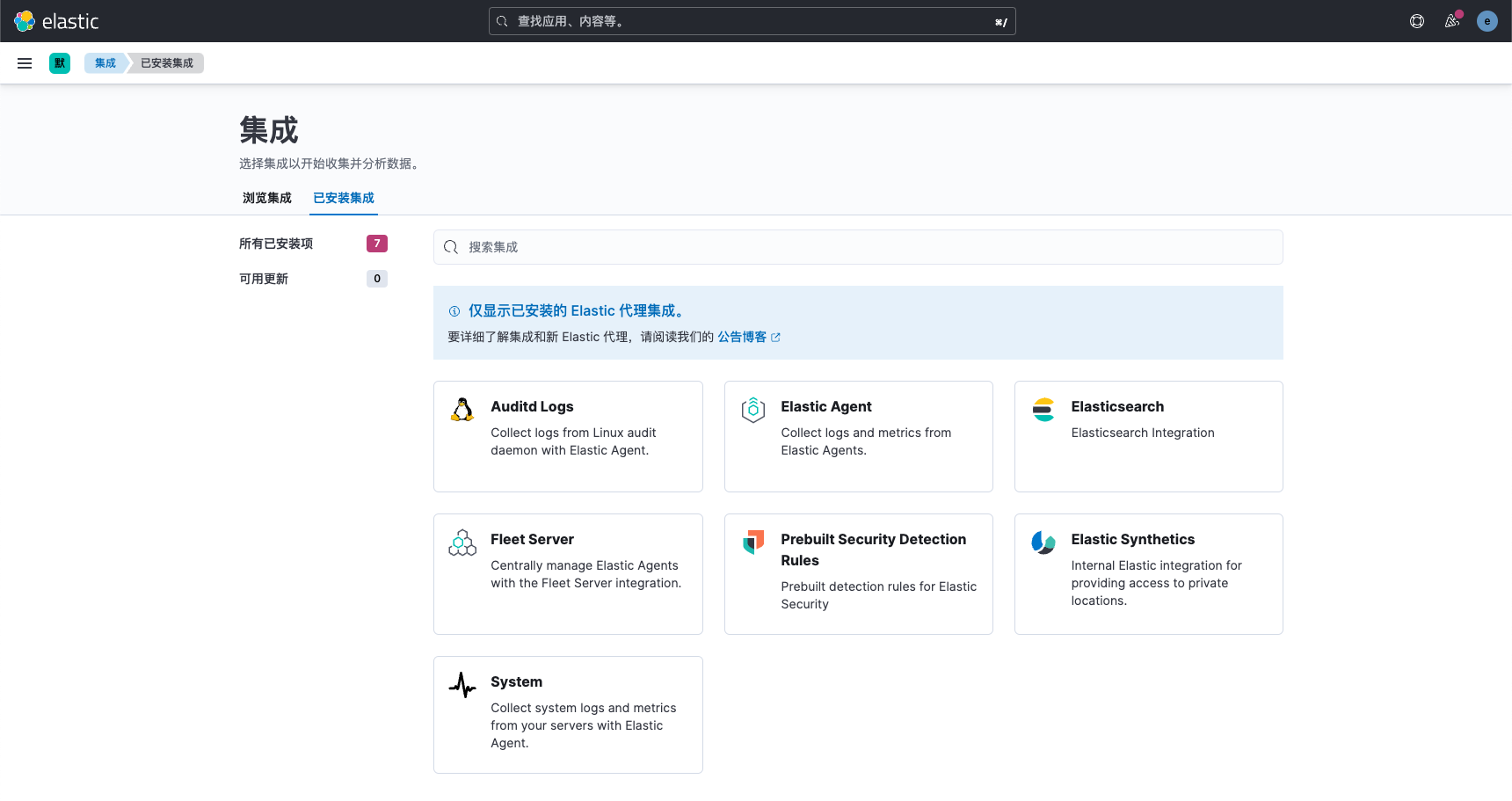

添加完成后查看已经集成的代理，显示Elasticsearch信息。

查看数据

查看dashboard

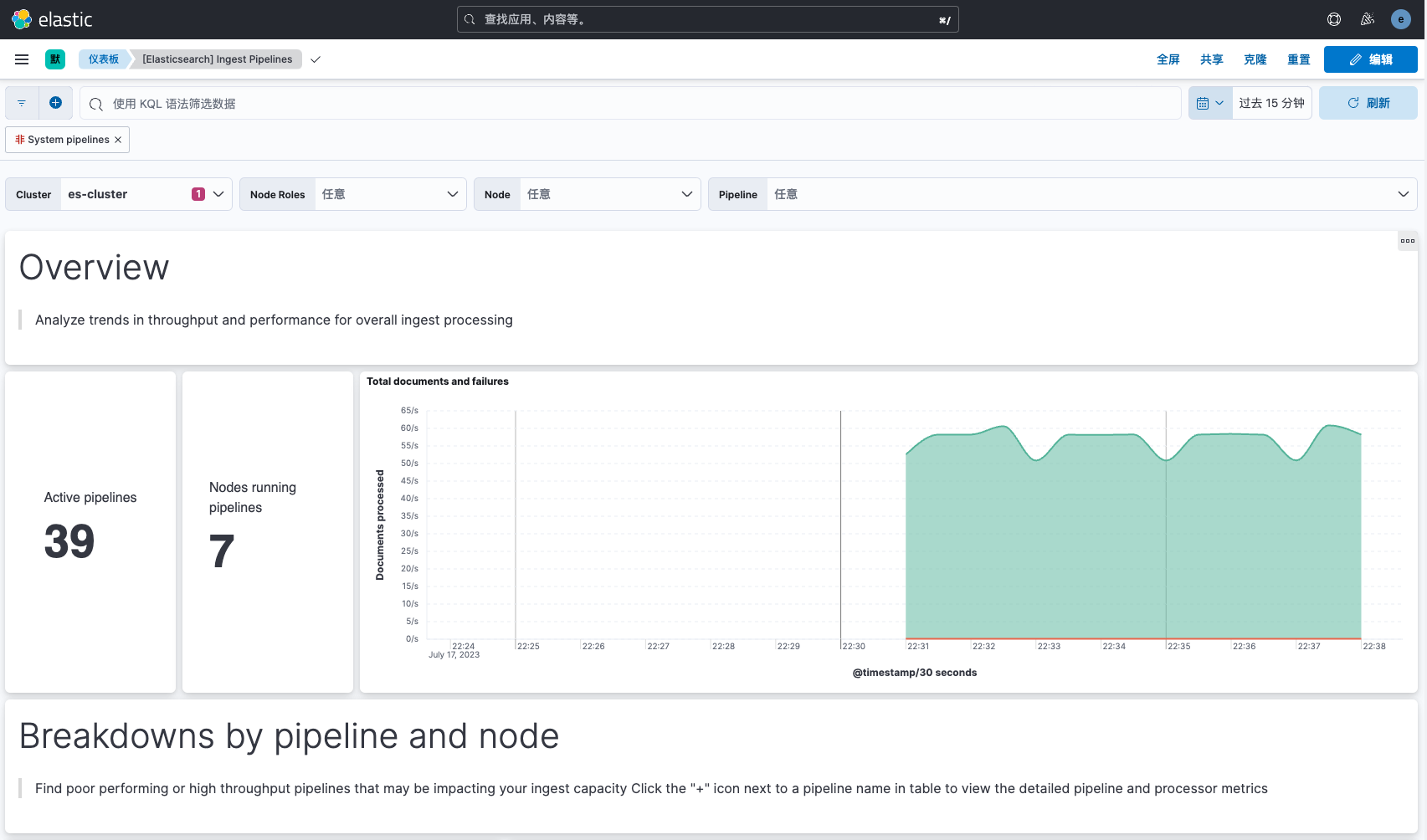

当我们添加Elastic代理集成后，会自动为我们创建相关的dashboard，接下来以Elasticsearch为例点击资产标签，既可查看默认的dashboard信息，点击其中一个查看详情 dashboard内容如下所示

查看数据流内容

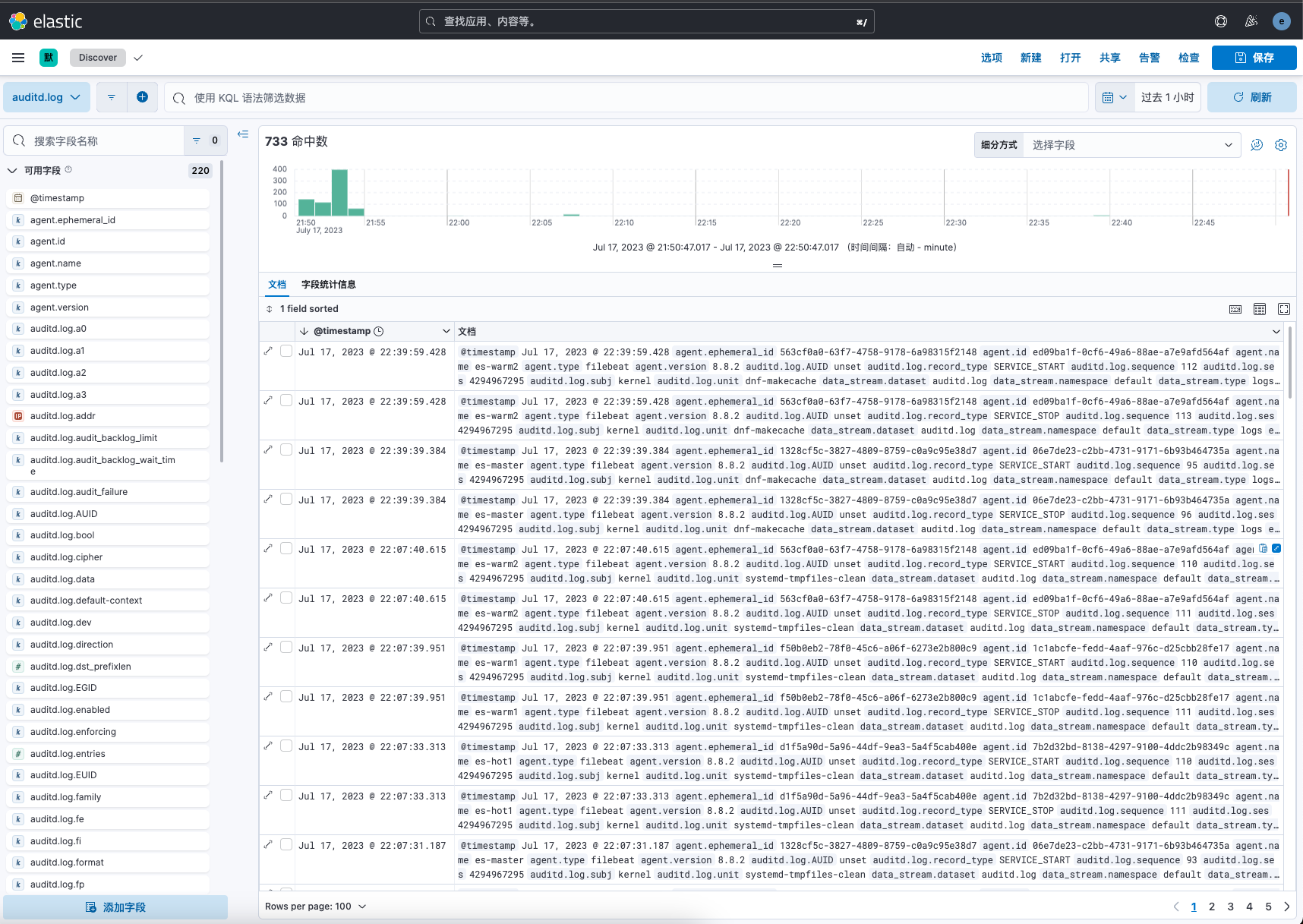

如果我们想查看日志的详细内容，可以通过添加discover查看，以auditd.log为例。可知审计日志数据集名称为auditd.log 接下来创建kibana discover，选择菜单——>Stack Management——>kibana discover 接下来创建数据视图，填写内容如下：打开discover菜单，选择auditd.log，即可查看详细的日志审计内容。

内网环境离线包仓库

某些场景下elk集群部署在隔离内网环境，无法直接访问互联网下载各种集成策略，此时就需要在内网搭建离线软件包仓库，并将默认的公网仓库地址改为内网离线仓库地址。

启动离线集成策略仓库容器

外网机器操作

# 外网机器拉取Docker软件包仓库
docker pull docker.elastic.co/package-registry/distribution:8.10.4
# 外网机器导出镜像
docker save -o package-registry-8.10.4.tar docker.elastic.co/package-registry/distribution:8.10.4

内网仓库机器操作

# 将镜像从外网机器导入内网仓库机器并导入镜像
docker load -i package-registry-8.10.4.tar
# 运行离线仓库容器
docker run --name=package-registry -d -p 8080:8080 --restart=always docker.elastic.co/package-registry/distribution:8.10.4

启动离线elastic agent仓库容器

外网机器操作

# 外网机器拉取nginx镜像
docker pull nginx
# 外网机器导出镜像
docker save -o nginx.tar nginx:latest
# 外网机器下载elastic agent、sha512、asc文件
wget https://artifacts.elastic.co/downloads/beats/elastic-agent/elastic-agent-8.10.4-linux-x86_64.tar.gz
wget https://artifacts.elastic.co/downloads/beats/elastic-agent/elastic-agent-8.10.4-windows-x86_64.zip
wget https://artifacts.elastic.co/downloads/beats/elastic-agent/elastic-agent-8.10.4-linux-x86_64.tar.gz.sha512
wget https://artifacts.elastic.co/downloads/beats/elastic-agent/elastic-agent-8.10.4-windows-x86_64.zip.sha512
wget https://artifacts.elastic.co/downloads/beats/elastic-agent/elastic-agent-8.10.4-linux-x86_64.tar.gz.asc
wget https://artifacts.elastic.co/downloads/beats/elastic-agent/elastic-agent-8.10.4-windows-x86_64.zip.asc

内网仓库机器操作

将镜像从外网机器导入内网仓库机器并导入镜像

docker load -i nginx.tar

软件包与nginx配置文件准备

[root@KA ~]# mkdir -p /opt/store/beats/elastic-agent/
[root@KA ~]# cd /opt/store/beats/elastic-agent/
# 导入elastic-agent包至/opt/store/beats/elastic-agent/路径下
[root@KA elastic-agent]# ls
elastic-agent-8.10.4-linux-x86_64.tar.gz elastic-agent-8.10.4-linux-x86_64.tar.gz.sha512 elastic-agent-8.10.4-windows-x86_64.zip elastic-agent-8.10.4-windows-x86_64.zip.sha512
[root@KA ~]# cd /opt/store
[root@KA ~]# ls
nginx.conf beats
[root@KA store]# cat nginx.conf
server {
    listen       8030;
    server_name  ~^.*$;

    location / {
        root /opt/store/;
        autoindex on;
        autoindex_exact_size off;
        autoindex_localtime on;
    }
}

修改权限

# 添加了一个指定gid为1001的upload用户
[root@KA store]# groupadd -g 101 nginx
# 添加了一个uid为1001的用户，并加入到upload的组中
[root@KA store]# useradd -u 101 -g nginx nginx
# 修改权限
[root@KA store]# chown -R nginx:nginx /opt/store

启动容器

[root@ELP-T-VM-KA store]# docker run --name store -d -p 8030:8030 -v /opt/store:/opt/store -v /opt/store/nginx.conf:/etc/nginx/conf.d/default.conf --restart always nginx:latest

修改kibana配置文件

新增registryUrl地址配置

xpack.fleet.registryUrl: "http://192.168.10.51:8080"

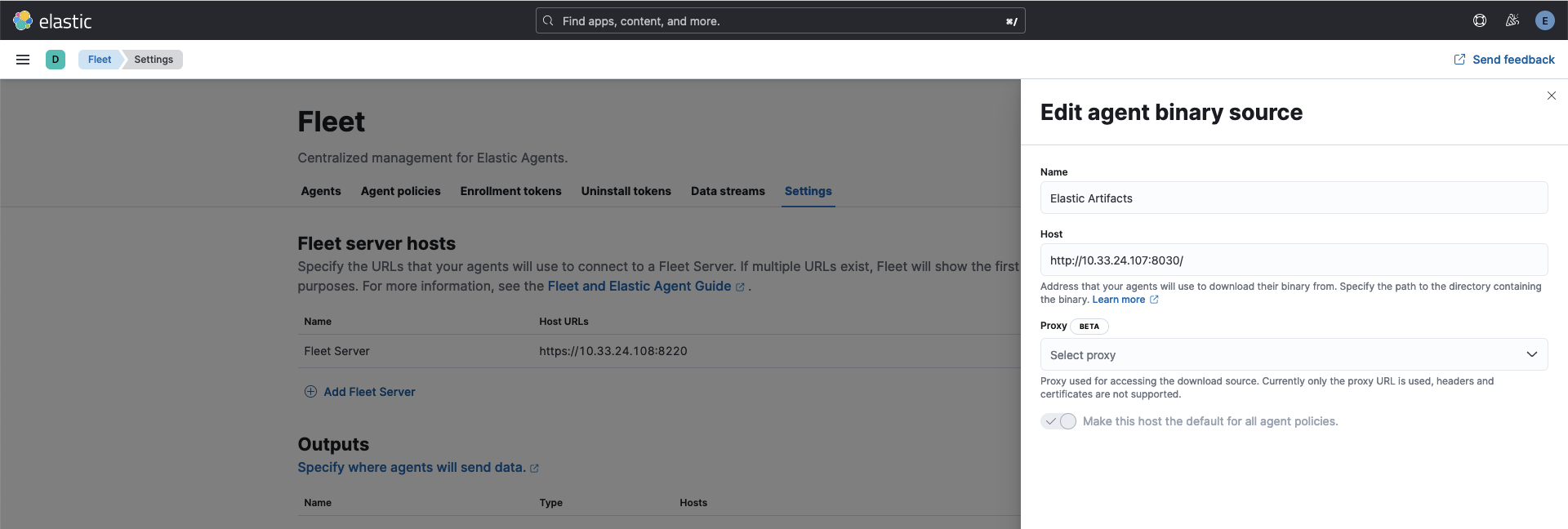

修改elastic agent包下载地址

验证

查看package-registry容器日志可知，所有集成策略资源均从内网elastic-repo中获取。

[root@es-repo ~]# docker logs elastic-repo -f
{"log.level":"info","@timestamp":"2023-11-27T14:06:47.440Z","log.logger":"http","message":"GET /package/elasticsearch/1.10.0/ HTTP/1.1","source.address":"192.168.10.50","http.request.method":"GET","url.path":"/package/elasticsearch/1.10.0/","url.domain":"192.168.10.51","http.response.code":200,"http.response.body.bytes":31938,"event.duration":4252455,"source.ip":"192.168.10.50","user_agent.original":"Kibana/8.10.4 node-fetch","url.port":8080,"ecs.version":"1.6.0"}
{"log.level":"info","@timestamp":"2023-11-27T14:06:47.455Z","log.logger":"http","message":"GET /package/elasticsearch/1.10.0/ HTTP/1.1","source.address":"192.168.10.50","http.request.method":"GET","url.path":"/package/elasticsearch/1.10.0/","url.domain":"192.168.10.51","http.response.code":200,"http.response.body.bytes":31938,"event.duration":3262071,"source.ip":"192.168.10.50","user_agent.original":"Kibana/8.10.4 node-fetch","url.port":8080,"ecs.version":"1.6.0"}
{"log.level":"info","@timestamp":"2023-11-27T14:06:47.493Z","log.logger":"http","message":"GET /epr/elasticsearch/elasticsearch-1.10.0.zip HTTP/1.1","source.address":"192.168.10.50","http.request.method":"GET","url.path":"/epr/elasticsearch/elasticsearch-1.10.0.zip","url.domain":"192.168.10.51","http.response.code":200,"http.response.body.bytes":638234,"event.duration":30916835,"source.ip":"192.168.10.50","user_agent.original":"Kibana/8.10.4 node-fetch","url.port":8080,"ecs.version":"1.6.0"}
{"log.level":"info","@timestamp":"2023-11-27T14:06:47.509Z","log.logger":"http","message":"GET /package/elasticsearch/1.10.0/ HTTP/1.1","source.address":"192.168.10.50","http.request.method":"GET","url.path":"/package/elasticsearch/1.10.0/","url.domain":"192.168.10.51","http.response.code":200,"http.response.body.bytes":31938,"event.duration":3209607,"source.ip":"192.168.10.50","user_agent.original":"Kibana/8.10.4 node-fetch","url.port":8080,"ecs.version":"1.6.0"}
{"log.level":"info","@timestamp":"2023-11-27T14:06:47.522Z","log.logger":"http","message":"GET /epr/elasticsearch/elasticsearch-1.10.0.zip.sig HTTP/1.1","source.address":"192.168.10.50","http.request.method":"GET","url.path":"/epr/elasticsearch/elasticsearch-1.10.0.zip.sig","url.domain":"192.168.10.51","http.response.code":200,"http.response.body.bytes":488,"event.duration":2503974,"source.ip":"192.168.10.50","user_agent.original":"Kibana/8.10.4 node-fetch","url.port":8080,"ecs.version":"1.6.0"}
{"log.level":"info","@timestamp":"2023-11-27T14:06:48.030Z","log.logger":"http","message":"GET /package/elasticsearch/1.10.0/img/logo_elasticsearch.svg HTTP/1.1","source.address":"192.168.10.50","http.request.method":"GET","url.path":"/package/elasticsearch/1.10.0/img/logo_elasticsearch.svg","url.domain":"192.168.10.51","http.response.code":200,"http.response.body.bytes":898,"event.duration":2825153,"source.ip":"192.168.10.50","user_agent.original":"Kibana/8.10.4 node-fetch","url.port":8080,"ecs.version":"1.6.0"}

参考文档

Elastic Agent介绍：https://www.elastic.co/guide/en/fleet/current/beats-agent-comparison.html#supported-outputs-beats-and-agent Fleet Server介绍：https://www.elastic.co/guide/en/fleet/8.8/fleet-server.html Elastic Agent命令：https://www.elastic.co/guide/en/fleet/current/elastic-agent-cmd-options.html#elastic-agent-cmd-options elastic离线环境仓库配置：https://www.elastic.co/guide/en/fleet/current/air-gapped.html
